Ping Email Channel Provider

Configuration

To configure the Ping Email integration, you'll need the following data:

required fields are marked with an `*`
ParameterTypeDescription
urlstring *URL to ping

In the Dashboard

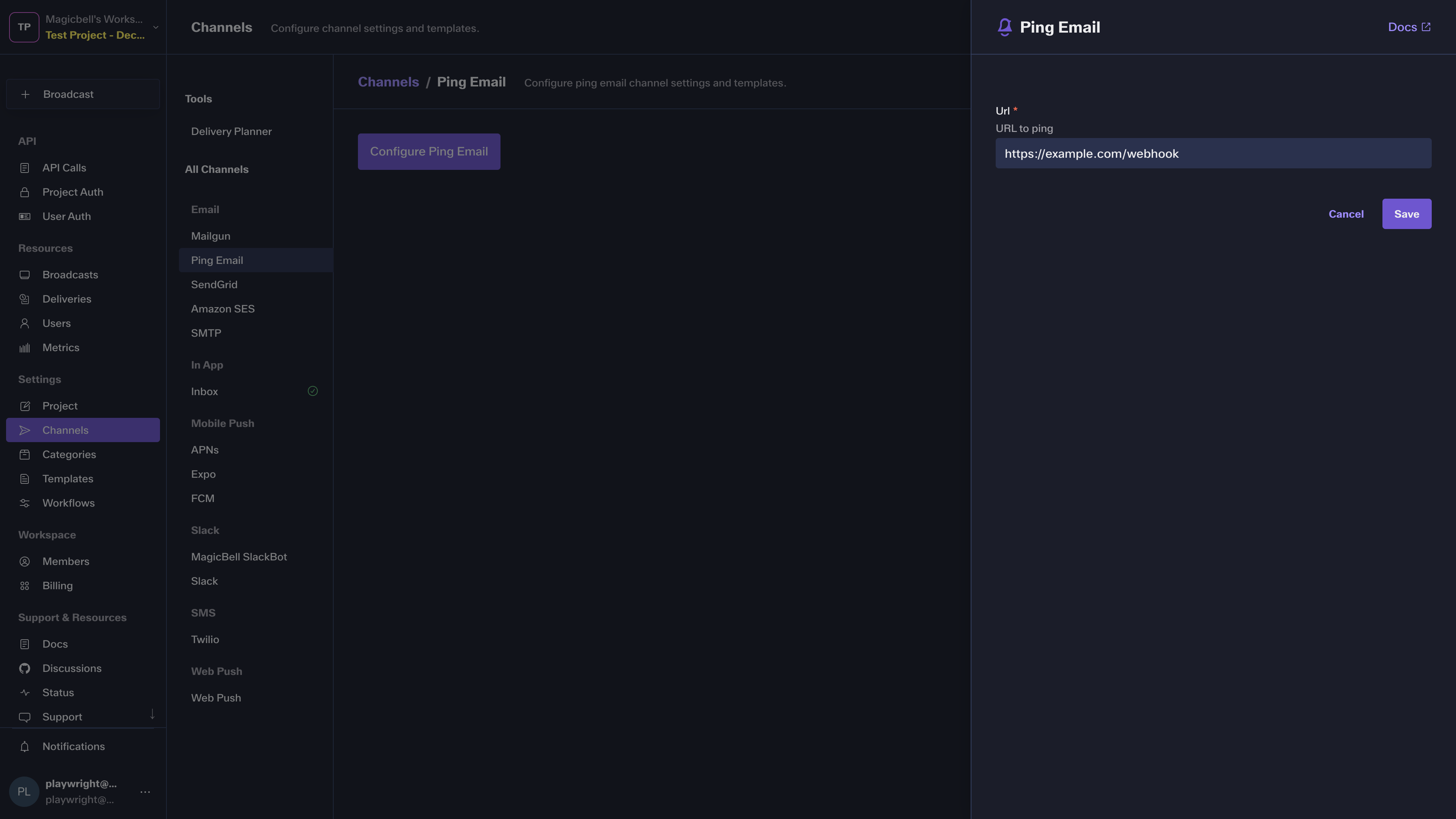

The easiest way to configure this integration is through the MagicBell dashboard:

  1. Log in to your MagicBell dashboard.
  2. Navigate to Channels.
  3. Find and click on this channel name in the sidebar.
  4. Click the Configure Ping Email button.
  5. Follow the on-screen instructions to complete the configuration.

Using the API

Use the API to list , delete and save Ping Email. For example, to save the integration:

Request
curl --request PUT \
  --url 'https://api.magicbell.com/v2/integrations/ping_email' \
  --header 'content-type: application/json' \
  --header "authorization: Bearer $TOKEN" \
  --data '{"url":"https://example.com/webhook"}'

Usage

1. When configured with

{
  "url": "https://example.com/webhook"
}

2. With a channel token

{
  "address": "[email protected]",
  "name": "Dan"
}

3. With Broadcast

{
  "action_url": "https://example.com",
  "category": "example",
  "content": "I come from broadcast",
  "custom_attributes": {},
  "id": "d1b3b3b3-3b3b-3b3b-3b3b-3b3b3b3b3b3b",
  "overrides": {},
  "recipients": [
    {
      "custom_attributes": {
        "plan": "enterprise",
        "preferred_pronoun": "They",
        "pricing_version": "v10"
      },
      "email": "[email protected]",
      "external_id": "83d987a-83fd034",
      "first_name": "Person",
      "last_name": "Doe",
      "phone_numbers": [
        "+1 5005550001"
      ]
    }
  ],
  "title": "Hello, World!",
  "topic": "example"
}

The channel handler triggers a HTTP request

POST https://example.com/webhook

With payload

{
  "notifications": [
    {
      "action_url": "https://example.com",
      "category": null,
      "content": "I come from broadcast",
      "custom_attributes": {},
      "id": "00000000-0000-0000-0000-000000000000",
      "overrides": {},
      "recipient": {
        "created_at": "0001-01-01T00:00:00Z",
        "custom_attributes": null,
        "email": null,
        "external_id": null,
        "first_name": null,
        "id": "00000000-0000-0000-0000-000000000000",
        "last_name": null,
        "last_notified_at": null,
        "last_seen_at": null,
        "updated_at": "0001-01-01T00:00:00Z"
      },
      "title": "Hello, World!",
      "topic": null,
      "updated_at": "0001-01-01T00:00:00Z"
    }
  ],
  "total": 1
}

Debugging

To debug the integration, you can use the following tools and techniques:

  • Use the Deliveries screen in the MagicBell dashboard to monitor notification deliveries and troubleshoot issues.
