APNs Channel Provider

Configuration

To configure the APNs integration, you'll need the following data:

In the Dashboard

The easiest way to configure this integration is through the MagicBell dashboard:

1. Log in to your MagicBell dashboard.
2. Navigate to Channels.
3. Find and click on this channel name in the sidebar.
4. Click the Configure APNs button.
5. Follow the on-screen instructions to complete the configuration.

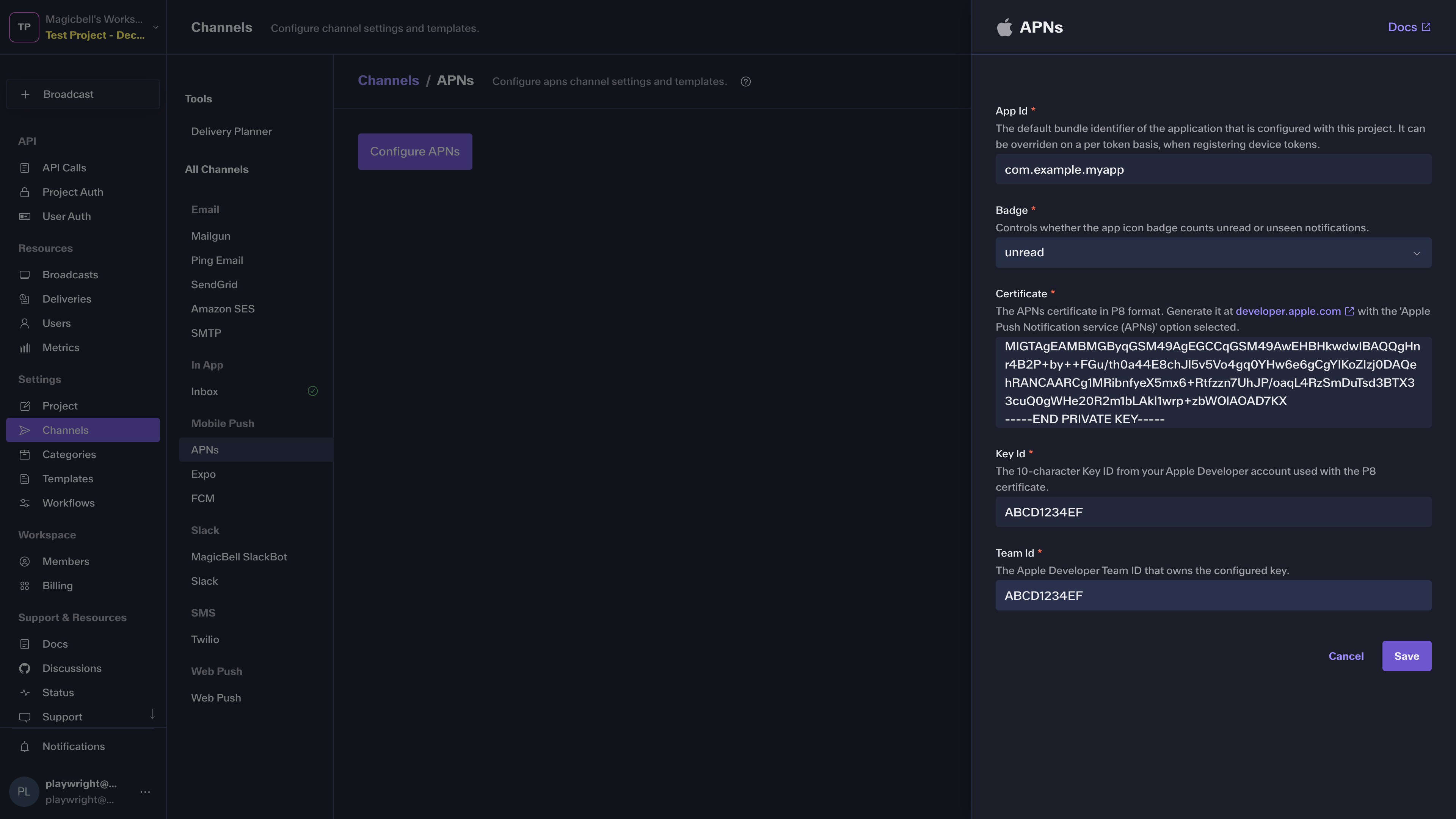

MagicBell Dashboard: Channel Configuration

curl --request PUT \
  --url 'https://api.magicbell.com/v2/integrations/apns' \
  --header 'content-type: application/json' \
  --header "authorization: Bearer $TOKEN" \
  --data '{"app_id":"com.example.myapp","certificate":"-----BEGIN PRIVATE KEY-----\nMIGTAgEAMBMGByqGSM49AgEGCCqGSM49AwEHBHkwdwIBAQQgHnr4B2P+by++FGu/th0a44E8chJl5v5Vo4gq0YHw6e6gCgYIKoZIzj0DAQehRANCAARCg1MRibnfyeX5mx6+Rtfzzn7UhJP/oaqL4RzSmDuTsd3BTX33cuQ0gWHe20R2m1bLAkI1wrp+zbWOlAOAD7KX\n-----END PRIVATE KEY-----","key_id":"ABCD1234EF","team_id":"ABCD1234EF","badge":"unread"}'

Channel Token

The channel token contains all the information (along with the config) necessary to deliver the notification on the APNs channel.

{
  "device_token": "eH0fLhuiRj2Np7UQ-opXAm:APA91bGtC-wH4sgW1jWkMKIZf7FYkm_RTQb7Jid7DfSJnCgivGYoRzhLrGxpcIF6yPjmbzAr6CKF-6phZkBasFUUfZmfdgcqfA_ZlZdVk6pSnon3LGzMumCzEJE0zgWoo_RUmVUVJUAt",
  "installation_id": "development"
}

Managing Tokens

Use the API to list , delete , delete , save , fetch , fetch and list APNs tokens. For example, to save a token:

curl --request PUT \
  --url 'https://api.magicbell.com/v2/channels/mobile_push/apns/tokens' \
  --header 'content-type: application/json' \
  --header "authorization: Bearer $TOKEN" \
  --data '{"device_token":"eH0fLhuiRj2Np7UQ-opXAm:APA91bGtC-wH4sgW1jWkMKIZf7FYkm_RTQb7Jid7DfSJnCgivGYoRzhLrGxpcIF6yPjmbzAr6CKF-6phZkBasFUUfZmfdgcqfA_ZlZdVk6pSnon3LGzMumCzEJE0zgWoo_RUmVUVJUAt","installation_id":"development"}'

Usage

1. When configured with

{
  "app_id": "com.example.myapp",
  "badge": "unread",
  "certificate": "-----BEGIN PRIVATE KEY-----\nMIGTAgEAMBMGByqGSM49AgEGCCqGSM49AwEHBHkwdwIBAQQgHnr4B2P+by++FGu/th0a44E8chJl5v5Vo4gq0YHw6e6gCgYIKoZIzj0DAQehRANCAARCg1MRibnfyeX5mx6+Rtfzzn7UhJP/oaqL4RzSmDuTsd3BTX33cuQ0gWHe20R2m1bLAkI1wrp+zbWOlAOAD7KX\n-----END PRIVATE KEY-----",
  "key_id": "ABCD1234EF",
  "team_id": "ABCD1234EF"
}

2. With a channel token

{
  "device_token": "eH0fLhuiRj2Np7UQ-opXAm:APA91bGtC-wH4sgW1jWkMKIZf7FYkm_RTQb7Jid7DfSJnCgivGYoRzhLrGxpcIF6yPjmbzAr6CKF-6phZkBasFUUfZmfdgcqfA_ZlZdVk6pSnon3LGzMumCzEJE0zgWoo_RUmVUVJUAt",
  "installation_id": "development"
}

3. With Broadcast

{
  "action_url": "https://example.com",
  "category": "example",
  "content": "I come from broadcast",
  "custom_attributes": {},
  "id": "d1b3b3b3-3b3b-3b3b-3b3b-3b3b3b3b3b3b",
  "overrides": {},
  "recipients": [
    {
      "custom_attributes": {
        "plan": "enterprise",
        "preferred_pronoun": "They",
        "pricing_version": "v10"
      },
      "email": "test@example.com",
      "external_id": "83d987a-83fd034",
      "first_name": "Person",
      "last_name": "Doe",
      "phone_numbers": [
        "+1 5005550001"
      ]
    }
  ],
  "title": "Hello, World!",
  "topic": "example"
}

The channel handler triggers a HTTP request

POST https://api.sandbox.push.apple.com/3/device/eH0fLhuiRj2Np7UQ-opXAm:APA91bGtC-wH4sgW1jWkMKIZf7FYkm_RTQb7Jid7DfSJnCgivGYoRzhLrGxpcIF6yPjmbzAr6CKF-6phZkBasFUUfZmfdgcqfA_ZlZdVk6pSnon3LGzMumCzEJE0zgWoo_RUmVUVJUAt

With payload

{
  "action-url": "https://example.com",
  "aps": {
    "alert": {
      "body": "I come from broadcast",
      "title": "Hello, World!"
    }
  },
  "custom-attributes": {}
}

Overrides

The provider overrides key in the broadcast payload can be used to change the default behavior of the channel handler.

overrides >> providers >> apns

Override `aps` key

Overrides

{
  "providers": {
    "apns": {
      "aps": {
        "alert": {
          "launch-image": "launch image",
          "loc-args": [
            "loc",
            "args"
          ],
          "loc-key": "loc key",
          "title-loc-args": [
            "title",
            "loc",
            "args"
          ],
          "title-loc-key": "title loc key"
        },
        "content-available": 1,
        "sound": "my_sound"
      }
    }
  }
}

Payload

{
  "action-url": "https://example.com",
  "aps": {
    "alert": {
      "body": "I come from broadcast",
      "launch-image": "launch image",
      "loc-args": [
        "loc",
        "args"
      ],
      "loc-key": "loc key",
      "title": "Hello, World!",
      "title-loc-args": [
        "title",
        "loc",
        "args"
      ],
      "title-loc-key": "title loc key"
    },
    "content-available": 1,
    "sound": "my_sound"
  },
  "custom-attributes": {}
}

Override `mutable-content` key

Overrides

{
  "providers": {
    "apns": {
      "mutable-content": 1
    }
  }
}

Payload

{
  "action-url": "https://example.com/notifications/0194a896-64fb-79ab-b7a0-3289c2b79675",
  "aps": {
    "alert": {
      "body": "Content body",
      "title": "John Doe mentioned you in a PR"
    }
  },
  "custom-attributes": {
    "audience": "user",
    "body": "Content body",
    "document": {
      "comment-id": "ff002c29-3279-4f60-a427-ea596412204a",
      "document-id": "843c7692-39bd-41ed-b841-2a873f0a9b7c",
      "slide-id": "bb951254-9388-4029-ae6d-003dde9c97df",
      "workspace-id": "c0d4647a-0ee4-40ec-b9f5-334e567e7e02"
    },
    "html-body": "\\u003cp\\u003eContent body\\u003c/p\\u003e",
    "html-title": "\\u003cb\\u003eJohn Doe\\u003c/b\\u003e mentioned you in \\u003cb\\u003ea PR\\u003c/b\\u003e",
    "sender": {
      "profile-picture-url": "https://example.com/profile/test-user.png",
      "username": "John Doe"
    },
    "source": "direct",
    "title": "John Doe mentioned you in a PR",
    "type": "comment-mention"
  }
}
